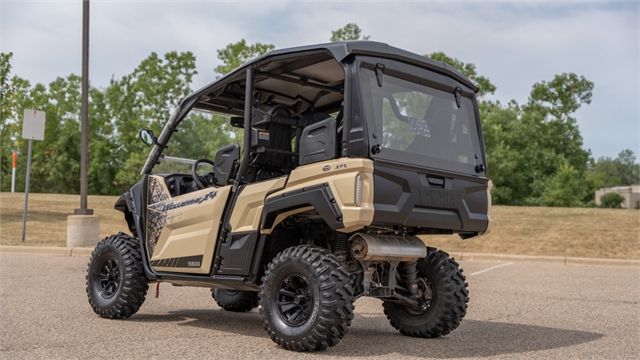

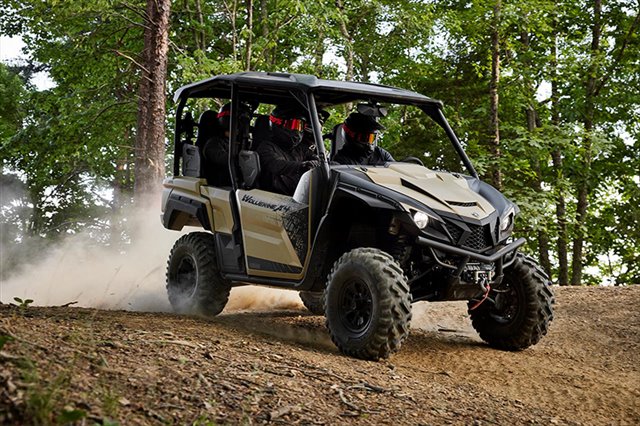

2023 Yamaha Wolverine X4 XT-R 850

Stock #UY105799
Your Price: $17,299

299 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Yamaha Wolverine X4 850 XT-R . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2023 Yamaha Wolverine X4 XT-R 850
  • VIN:
    574AN14Y5PA105799
  • Model Number:
    YXE85WTZPB
  • Stock Number:
    UY105799
  • Title:
    Clear
  • Location:
    Motoprimo Motorsports
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    8.1
  • Front Brake Diameter (mm):
    207
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    8.1
  • Rear Brake Diameter (mm):
    207
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Command™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.23
  • Bore (mm):
    82
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.5
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    847
  • Displacement (ci):
    51.7
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    3.16
  • Stroke (mm):
    80.2
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Hard
  • CV Boot Cover:
    Yes
  • Exhaust Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes
  • Radiator Guard:
    Yes
  • Rear Mud Guards:
    Yes

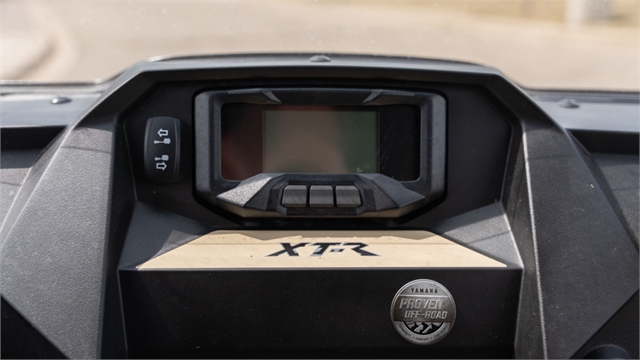

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

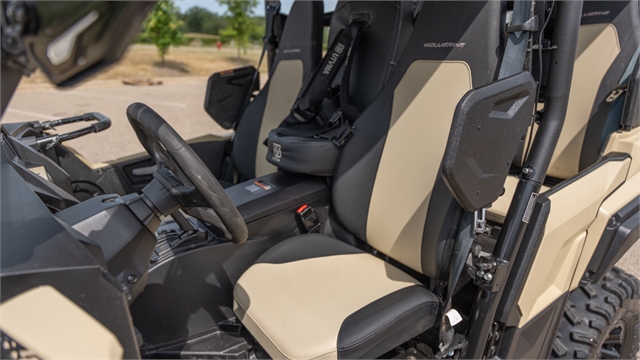

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    4
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    272.2
  • Bed Capacity (lbs.):
    600
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    6

SUSPENSION

  • Adjustment Type:
    Spring Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    8.7
  • Front Travel (mm):
    221
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    9.3
  • Rear Travel (mm):
    236.2

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.47
  • Fuel Capacity (gal):
    9.2
  • Fuel Capacity (l):
    34.8
  • Ground Clearance (in):
    11.3
  • Ground Clearance (mm):
    287
  • Height (in):
    77.7
  • Height (mm):
    1973.6
  • Length (ft):
    10.17
  • Length (ft/ft):
    10
  • Length (ft/in):
    2
  • Length (in):
    122
  • Length (mm):
    3098.8
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    15.8
  • Wet Weight (kg):
    822.8
  • Wet Weight (lbs):
    1814
  • Wheelbase (in):
    83.7
  • Wheelbase (mm):
    2126
  • Width (in):
    62.2
  • Width (mm):
    1579.9

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Warn®

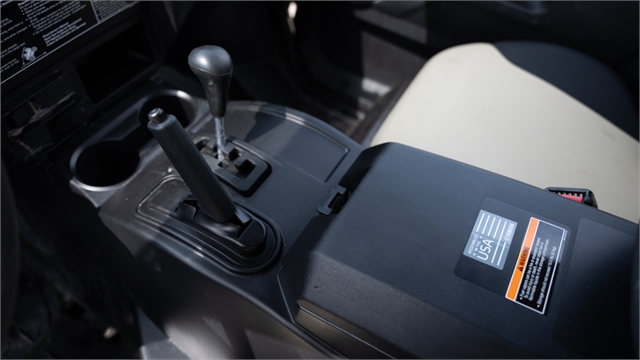

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    GBC® Dirt Commander® AT27 X 9-12
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    GBC® Dirt Commander® AT27 X 11-12
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    GBC
  • Tread Type:
    All Terrain
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum

Our Location

Motoprimo Motorsports
16640 Kenrick Ave
Lakeville, MN 55044

Unit Disclaimer:

All Rebates applied.  price does not include tax, state fees, document fee, setup, or freight.Price does not include any accessories or installation.  Price is subject to change at dealers discretion.
