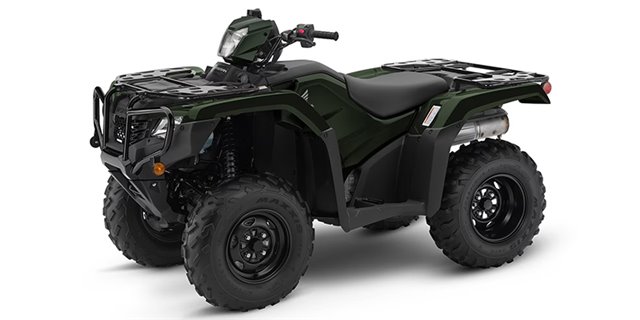

2024 Honda FourTrax Foreman 4x4

Stock #H000116
MSRP: $7,899 USD

269 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Honda FourTrax Foreman 4x4 . I'm in the area and you can reach me at or on my phone at .

NEW 2024 Honda FourTrax Foreman 4x4 ATV FOR SALE NEAR LAKEVILLE, MN.

This NEW 2024 Honda FourTrax Foreman 4x4 ATV is for sale at Motoprimo Motorsports located in Lakeville, Minnesota. If this isn't the exact Honda vehicle you're looking for don't hesitate to go back and REVISE YOUR SEARCH. We are sure to have the perfect motorsport for you in our showroom located in Lakeville, Minnesota. At Motoprimo Motorsports we host a large selection of new and used motorcycles, atv, dirt bikes, side x sides and much more in the Burnsville area. Contact Motoprimo Motorsports today to SCHEDULE A SHOWING. Visit Motoprimo Motorsports of Lakeville, your family-owned MN motorsports dealership.



MOTOPRIMO MOTORSPORTS

Map Directions: 16440 Kenrick Ave, Lakeville, MN 55044

Click to Call: (952) 465-0500



2024 Honda FourTrax Foreman 4x4

  • Status:
    New
  • Vehicle:
    2024 Honda FourTrax Foreman 4x4
  • VIN:
    1HFTE4410R4000116
  • Model Number:
    TRX520FM1R
  • Color:
    Avenger Red
  • Stock Number:
    H000116
  • Title:
    Clear
  • Location:
    Motoprimo Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.78
  • Bore (mm):
    96
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    518
  • Displacement (ci):
    31.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.82
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    34.5
  • Seat Height (mm):
    876.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    39.9
  • Capacity (kgs):
    79.8
  • Capacity (lbs):
    176
  • Capacity (lbs):
    88

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.3
  • Front Travel (mm):
    185
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    7.3
  • Rear Travel (mm):
    185

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    7.5
  • Ground Clearance (mm):
    190.5
  • Height (in):
    47.8
  • Height (mm):
    1214
  • Length (ft):
    6.91
  • Length (ft/ft):
    6
  • Length (ft/in):
    10.9
  • Length (in):
    82.9
  • Length (mm):
    2105.7
  • Towing Capacity (kgs):
    384.7
  • Towing Capacity (lbs):
    848
  • Turning Radius (ft):
    10.5
  • Wet Weight (kg):
    288
  • Wet Weight (lbs):
    635
  • Wheelbase (in):
    50
  • Wheelbase (mm):
    1270
  • Width (in):
    47.4
  • Width (mm):
    1204

TOWING & HAULING

  • Rear Hitch Type:
    Receiver

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 x 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 x 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
