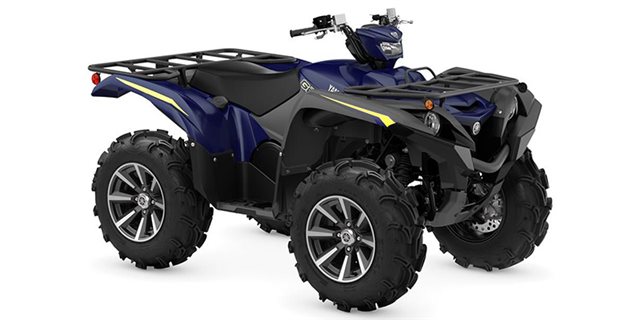

2023 Yamaha Grizzly EPS SE

Stock #Y104176
MSRP: $11,999 USD
Discount: $1,300
Your Price: $10,699 USD

496 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Yamaha Grizzly EPS SE . I'm in the area and you can reach me at or on my phone at .

NEW 2023 Yamaha Grizzly EPS SE ATV FOR SALE NEAR LAKEVILLE, MN.

This NEW 2023 Yamaha Grizzly EPS SE ATV is for sale at Motoprimo Motorsports located in Lakeville, Minnesota. If this isn't the exact motorsport vehicle you're looking for don't hesitate to go back and REVISE YOUR SEARCH. We are sure to have the perfect motorsport for you in our showroom located in Lakeville, Minnesota. At Motoprimo Motorsports we host a large selection of new and used motorcycles, atv, dirt bikes, side x sides and much more in the Burnsville area. Contact Motoprimo Motorsports today to SCHEDULE A SHOWING. Visit Motoprimo Motorsports of Lakeville, your family-owned MN motorsports dealership.



MOTOPRIMO MOTORSPORTS

Map Directions: 16440 Kenrick Ave, Lakeville, MN 55044

Click to Call: (952) 465-0500



2023 Yamaha Grizzly EPS SE

  • Status:
    New
  • Vehicle:
    2023 Yamaha Grizzly EPS SE
  • VIN:
    5Y4AMK2E6PA104176
  • Stock Number:
    Y104176
  • Title:
    Clear
  • Location:
    Motoprimo Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Command™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    686
  • Displacement (ci):
    41.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    44
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.31
  • Stroke (mm):
    84
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    36.1
  • Seat Height (mm):
    916.9
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Brand:
    Electronic Power Steering (EPS)
  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    49.9
  • Capacity (kgs):
    89.8
  • Capacity (lbs):
    110
  • Capacity (lbs):
    198
  • Fender Storage Location:
    Front

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.6
  • Front Travel (mm):
    193
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    9.1
  • Rear Travel (mm):
    231.1

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.91
  • Fuel Capacity (gal):
    4.8
  • Fuel Capacity (l):
    18.2
  • Ground Clearance (in):
    11.8
  • Ground Clearance (mm):
    299.7
  • Height (in):
    50
  • Height (mm):
    1270
  • Length (ft):
    6.79
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.5
  • Length (in):
    81.5
  • Length (mm):
    2070.1
  • Towing Capacity (kgs):
    589.7
  • Towing Capacity (lbs):
    1300
  • Turning Radius (ft):
    12.2
  • Wet Weight (kg):
    342
  • Wet Weight (lbs):
    754
  • Wheelbase (in):
    49.2
  • Wheelbase (mm):
    1249.7
  • Width (in):
    49.2
  • Width (mm):
    1249.7

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    UltraMatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® Zilla AT27 x 10 - 14 MU01
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Maxxis® Zilla AT27 x 10 - 14 MU01
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum

Our Location


Motoprimo Motorsports
16640 Kenrick Ave
Lakeville, MN 55044

Unit Disclaimer:

All Rebates applied.  price does not include tax, state fees, document fee, setup, or freight.Price does not include any accessories or installation.  Price is subject to change at dealers discretion.
