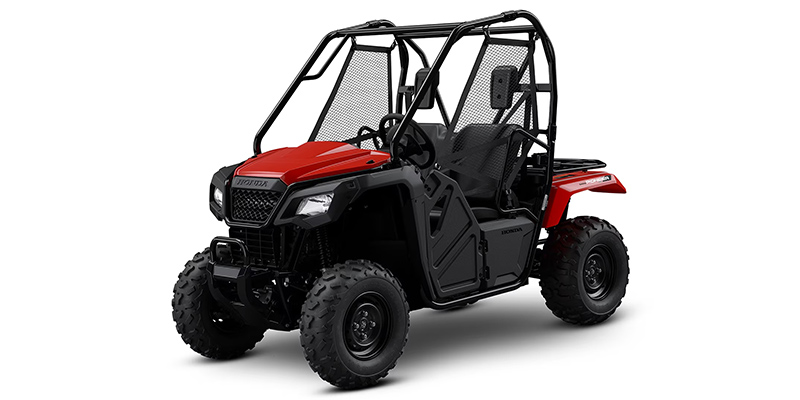

2023 Honda Pioneer 500

Stock #H800905
MSRP: $8,999 USD
Stock Photos - Actual Images Coming Soon

217 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Honda Pioneer 500 Base . I'm in the area and you can reach me at or on my phone at .

NEW 2023 Honda Pioneer 500 Side by Side UTV FOR SALE NEAR LAKEVILLE, MN.

This NEW 2023 Honda Pioneer 500 Side by Side UTV is for sale at Motoprimo Motorsports located in Lakeville, Minnesota. If this isn't the exact Honda vehicle you're looking for don't hesitate to go back and REVISE YOUR SEARCH. We are sure to have the perfect motorsport for you in our showroom located in Lakeville, Minnesota. At Motoprimo Motorsports we host a large selection of new and used motorcycles, atv, dirt bikes, side x sides and much more in the Burnsville area. Contact Motoprimo Motorsports today to SCHEDULE A SHOWING. Visit Motoprimo Motorsports of Lakeville, your family-owned MN motorsports dealership.



MOTOPRIMO MOTORSPORTS

Map Directions: 16440 Kenrick Ave, Lakeville, MN 55044

Click to Call: (952) 465-0500



2023 Honda Pioneer 500

  • Status:
    New
  • Vehicle:
    2023 Honda Pioneer 500
  • VIN:
    1HFVE0361P4800905
  • Color:
    Green
  • Stock Number:
    H800905
  • Title:
    Clear
  • Location:
    Motoprimo Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    475
  • Displacement (ci):
    29
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Soft
  • CV Boot Cover:
    Yes
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Height (in):
    27.7
  • Seat Height (mm):
    703.6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Capacity (kgs):
    204.1
  • Capacity (lbs):
    450
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    5.8
  • Front Travel (mm):
    147.3
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    5.9
  • Rear Travel (mm):
    149.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.1
  • Fuel Capacity (l):
    15.5
  • Fuel Capacity Reserve (gal):
    1.1
  • Fuel Capacity Reserve (l):
    4.2
  • Ground Clearance (in):
    8.5
  • Ground Clearance (mm):
    215.9
  • Height (in):
    71.2
  • Height (mm):
    1808.5
  • Length (ft):
    8.55
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.6
  • Length (in):
    102.6
  • Length (mm):
    2606
  • Payload Capacity (kgs):
    204.1
  • Payload Capacity (lbs):
    450
  • Towing Capacity (kgs):
    453.6
  • Towing Capacity (lbs):
    1000
  • Turning Radius (ft):
    12.8
  • Wet Weight (kg):
    465.8
  • Wet Weight (lbs):
    1027
  • Wheelbase (in):
    73
  • Wheelbase (mm):
    1854.2
  • Width (in):
    50
  • Width (mm):
    1270

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 24 x 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 24 x 10-12
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
